Mesa 12 GHz RF Transmitter Audio Video Spy Device Detection System
Portable Spectrum Analyzer

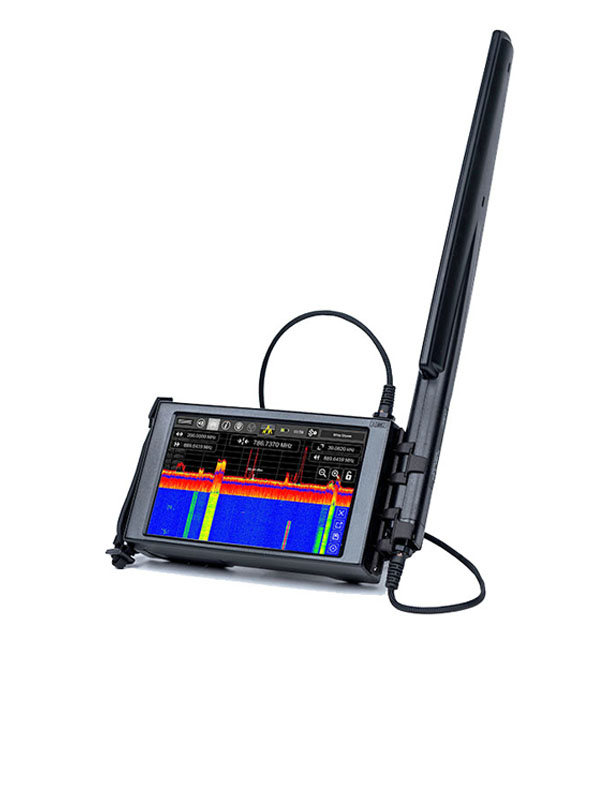

MESA™ is a portable, handheld Mobile RF receiver that detects known, unknown, illegal, disruptive, or interfering RF signals.
MESA™ offers portability and operational features not found in other spectrum analyzers.
It provides tools, features, and design capabilities to locate unknown signals across a wide frequency range up to 6 GHz (up to 12 GHz with a down-converter antenna). MESA™ features a new patented SmartBars™ operating mode, which displays signal activity on an analysis detection graph.
Efficiency:
MESA™ is easy to set up and user-friendly, putting scan data at your fingertips. Automatic antenna recognition makes changing antennas fast and seamless.
Usability:

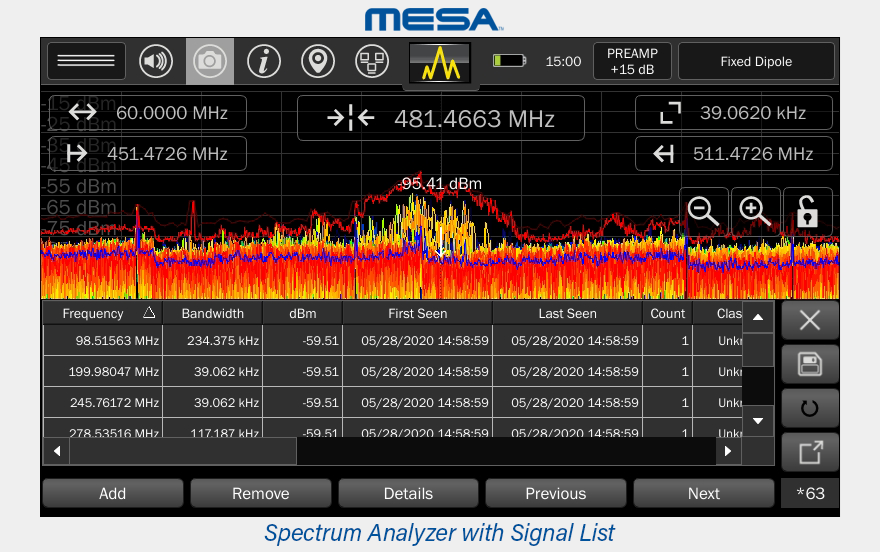

Full touchscreen control allows quick access to Spectrum, Wi-Fi, Bluetooth®, Mobile Bands, and SmartBars™ modes.
Portability:

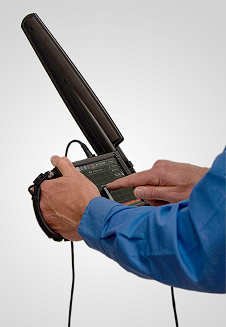

A portable, handheld unit that can be used as a fixed system, mounted in a custom case, or operated with handheld antennas/probes. It scans target areas professionally by automatically selecting the appropriate antenna.
General Application Features:
|
RECEIVER
|
|
Sweep Speed: >200 GHz/second
Operating Freq. Range: 10 kHz - 6 GHz /*12 GHz
Resolution Bandwidth Variable depending on span: 0.0380 kHz to 312.5 kHz
Instantaneous Bandwidth: 25 MHz
DANL - Noise Floor: 500 kHz RBW with Pre-amp: -102 dBm
Attenuation: 0 dB, 10 dB, 20 dB, Auto
Preamp: +15 dB
Detection Types: RF, Carrier Current, Acoustic Leakage, IR/Visible Light, Ultrasonic
Spurious Free Dynamic Range: 81.6 dB
Receiver Type: Swept-tuned Superheterodyne
Audio Demodulation AM/FM demodulation with filter options: Auto, 200 kHz, 20 kHz, 5 kHz
Input Port: QMA connector (RF input) for included and auxiliary RF antennas
|
|
POWER
|
|
Supply AC: 100-240V/50-60Hz; single rechargeable Li-ion battery (includes 1 spare)
Run Time: ~3 hours (typical) per battery
Charge time: ~3 hours per battery (typical)
|
|
MECHANICAL
|
|
Unit Dimensions: 5 x 8 x 2 in /13 x 20 x 5 cm
Unit Weight: 2.4lbs/1.1kg including battery

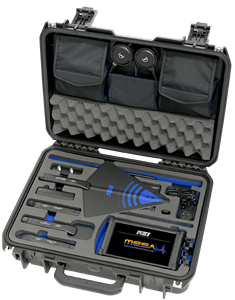

Case Dimensions: 6 x 15 x 18.5in / 16 x 38 x 47cm
Case/Contents Weight: 15lbs. / 6.8kg
|
|
ENVIRONMENTAL
|
Operating temperature: -10° to 53° C
Battery charging temperature: 5° to 37° C
Storage temperature: -20° to 60° C |
