Swarm Mesa® Continuous Environment Rf Spy Device Detection System

SWARM MESA® On-Site Monitoring System

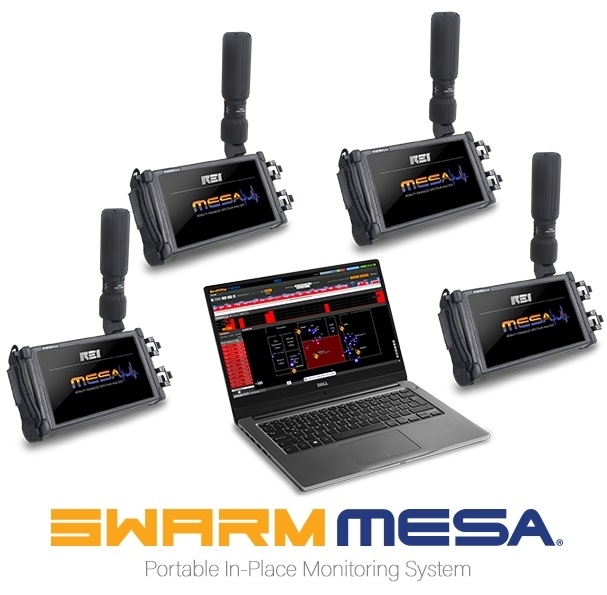

SWARM MESA® is a portable, easy-to-transport on-site monitoring system that connects multiple MESA® spectrum analyzer devices to a SWARM software control unit. The SWARM MESA® network provides continuous 24/7 RF and WiFi monitoring of facilities, environments, and events to detect and locate known, unknown, and unwanted transmissions.

EFFICIENCY
SWARM MESA® collects short- or long-term Missions that detect, alert, record, and analyze RF/WiFi activity in Areas of Interest (AOIs). SWARM MESA® quickly observes where and when RF events occur and issues alerts when devices transmit. MESA® spectrum analyzer devices can also be used to scan AOIs to capture transmission data and locate suspicious devices.

EASE OF USE
The SWARM software comes pre-installed on a laptop that is ready to connect to the network and collect RF/WiFi data. SWARM MESA® is designed with ease of use in mind.

PORTABILITY
SWARM MESA® is easy to transport and set up. Everything required for installation and operation—including four MESA® spectrum analyzers, antennas, cables, a laptop, and software—is packaged in durable, hard-shell portable cases.

FEATURES

• Provides live short/long term 24/7 RF & WiFi monitoring
• Portable, quick deployment IPMS
• Modular for adapting to target environment
• Inside/outside Geo-Location
• Each MESA independently sweeps 6GHz 33 times a second (200 GHz/sec)

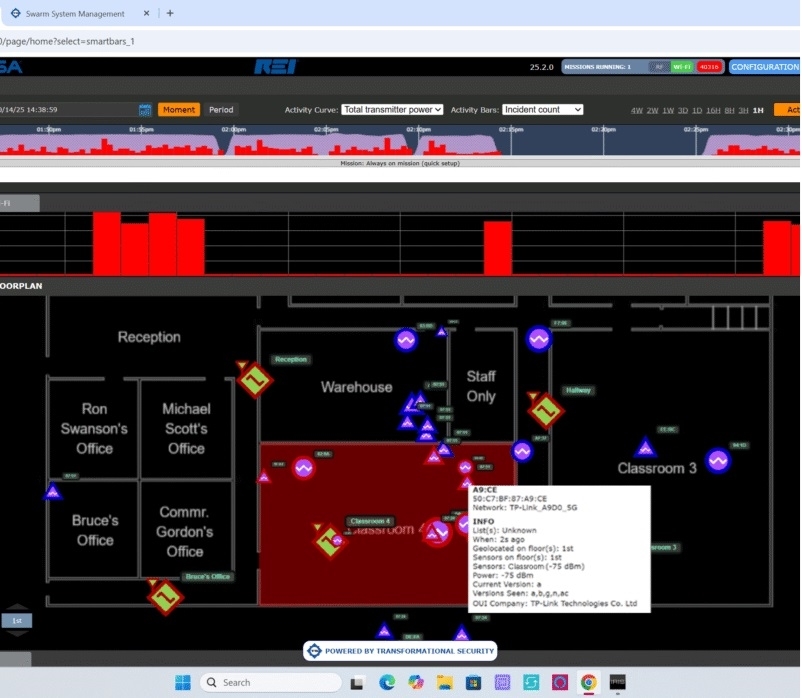

• Signal localization (heat mapping)
• Signal classification
• Live monitoring
• Continuous event recording
• Playback, Data logging and event analysis
• Mission scheduling
• Quick setup guide
• Alerts warnings and notifications

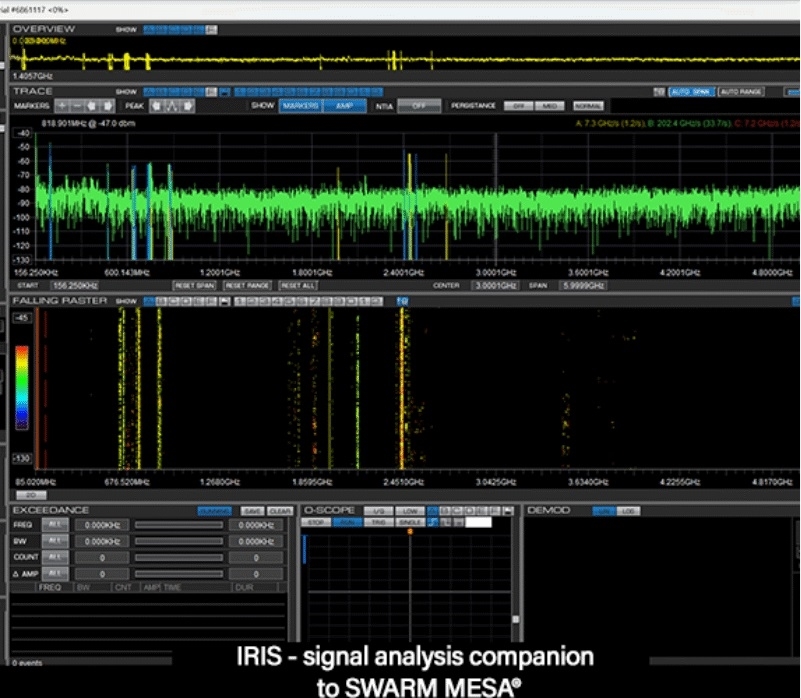

• Includes IRIS software for sensor spectrum analysis
• MESAs can be used to physically locate devices
• Part of a layered TSCM strategy
• Expandable
• Cable Kit – included with SWARM MESA^®

APPLICATIONS

• Technical Surveillance Countermeasures (TSCM) – detecting RF/WiFi eavesdropping transmitters
• Monitoring sensitive rooms or facilities for RF emissions
• Monitoring for unauthorized wireless or cellular activity
• Continuous surveillance of advanced threats
• Preventing unauthorized IOT devices from stealing operational data
• Monitoring power plants, pipelines, or refineries for interference
• Spectrum analysis
• Executive Protection

SPECIFICATIONS

SWARM MESA Kit
SWARM installed Laptop (Controller) – Lenova ThinkPad P16s Gen3 (Intel)
Power adapter: 135 W USB-C Slim (3-pin)
Dimensions: 14 x 10 x .083 in / 36 x 25 x 2 cm
Weight: 4 lbs./1.82 kg
Operating System: Windows 11 Pro

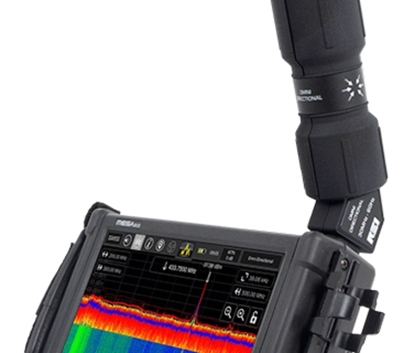

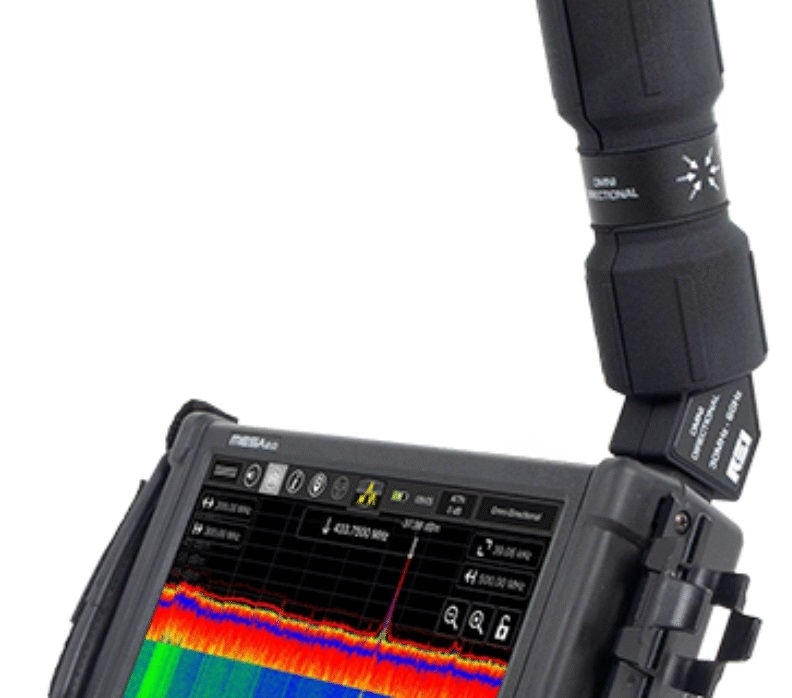

4 MESA^® Spectrum Analyzers:  See MESA 2.0

4 Fixed Omnidirectional Antennas:

•  Frequency: 30 MHz to 6 GHz
•  Connector:  QMA

4 Li-ion batteries: 10.8V, 3350 mAH, 36.20 Wh
4 Power Supply Adapters: 15V, 3A w/int’l adapters

Optional antennas available

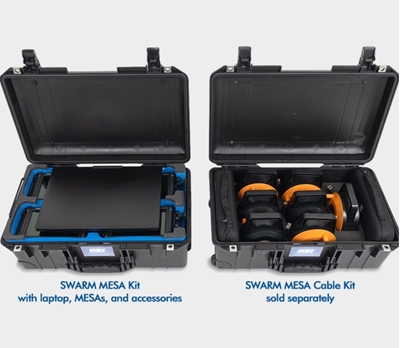

Hardshell case with custom cut foam insert
Weight: 30 lbs./14 kg.
Case dimensions: 22 x 14 x 9 in / 56 x 36 x 23 cm

________________________________________

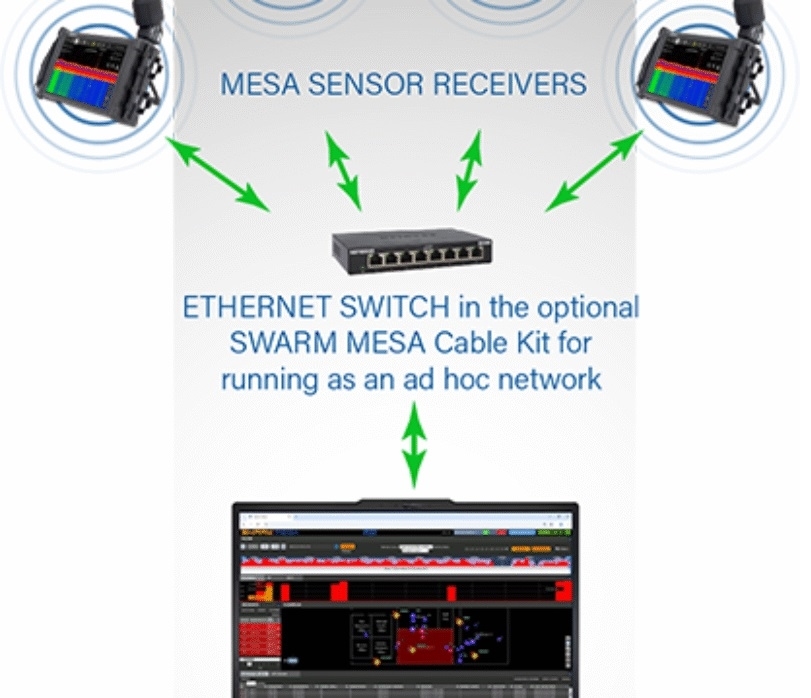

SWARM MESA Ethernet Cable Kit – sold separately
Ethernet switch:

• Gigabit
• DC input/12 v /0.5 A
• 10/100/1000 Mbps ports : 8

Retractable Ethernet cables (7):

• Length: 50 ft/15 m
• Spool dimensions : 3 x 5.1 x 6.5

Hardshell case with custom cut foam insert
Case weight: 22 lbs./10 kg
Dimensions: 22 x 14 x 9 in / 56 x 36 x 23 c
